Server setup

Django API and lizard site

An Ubuntu 12.04 LTS server for the various test sites has been set up at s-ddsc-ws-d1.external-nens.local on a virtual machine in Nelen & Schuurmans’ Amsterdam data center. (See nens-internal-only server overview page.)

Three sites are hosted there at the moment:

• The Django API site has already been set up in a very, very initial version at http://test.api.dijkdata.nl/ . It will have both a read and write API. Also included will be a socket implementation for receiving sensor data, just like at the IJkdijk experiment. Later on, this can be split over multiple servers if needed.
• The management site is at http://test.beheer.dijkdata.nl/ .
• The front-end Lizard site is at http://test.dijkdata.nl/ .

The Ubuntu server also has a PostgreSQL/PostGIS database locally. Later on, this has to be moved to a separate machine.

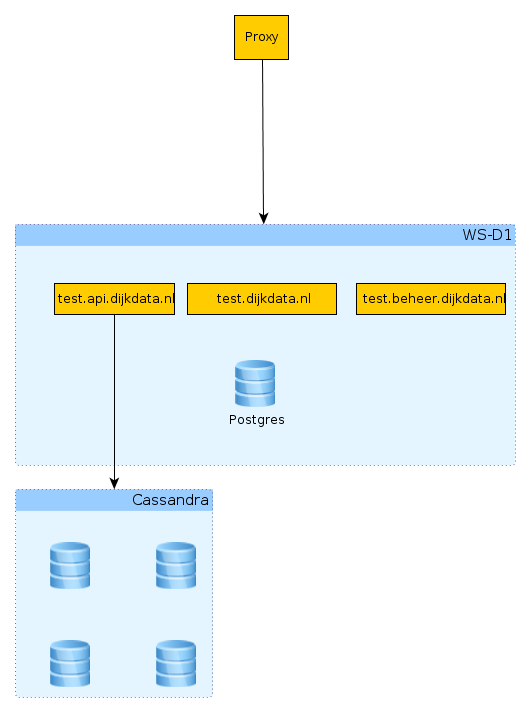

The current structure is as follows:

PostgreSQL

PostgreSQL is running on p-ddsc-db-d1.ddsc.local.

Cassandra cluster

Using a Chef cookbook, four Cassandra servers have been set up, named p-ddsc-cass-d1.ddsc.local till p-ddsc-cass-d4.ddsc.local. They run Ubuntu 12.04 LTS.

RabbitMQ

A dedicated RabbitMQ server is on p-ddsc-rmq-d1.ddsc.local.

Rest API

The DDSC webclient is at http://ddsc.github.com/webclient .

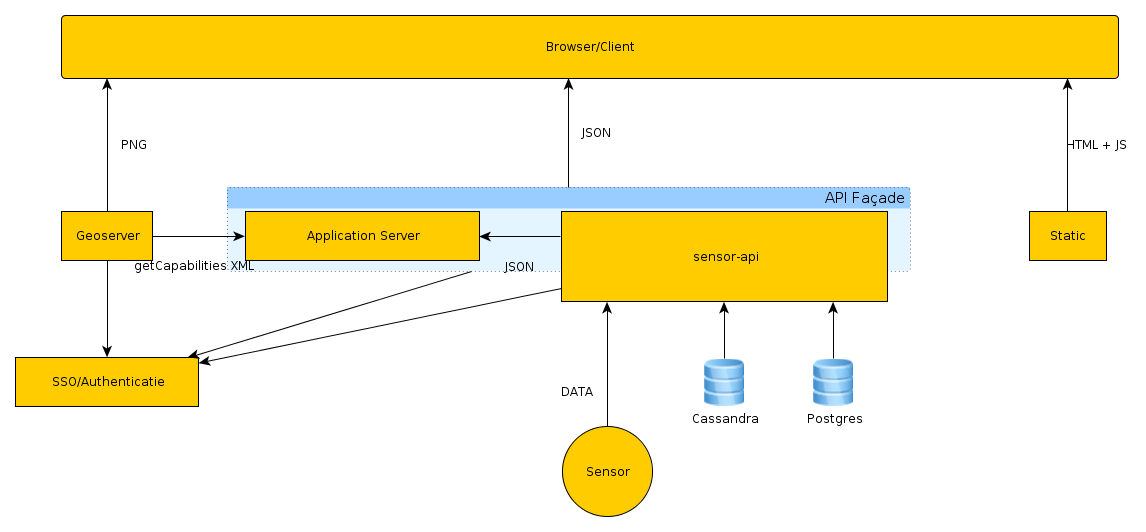

The communication of the webclient and the server follow this diagram:
